Laser Cutting
X3 + JZ-E Workstation for Fiber Laser
0.3T servo hoist with rear-mounted folding jib crane. Designed to reduce manual sheet handling and improve loading consistency.
Jinan Euchio Machinery Co., Ltd.
Precision in Motion,
Safety Under Load
Intelligent servo hoists & light crane systems for workshops that need accurate, fast, and reliable material handling.
Industrial lifting selection support for overseas workshops
About EUCHIO
Jinan Euchio Machinery Co., Ltd. supports overseas manufacturers with practical equipment selection, project communication, and export coordination for sheet metal processing and workshop automation.
Our work is focused on matching the right lifting system to real production conditions: sheet size, load weight, working radius, lifting height, cycle frequency, workshop layout, and operator safety.
For smart hoists and light crane systems, EUCHIO helps buyers compare configurations, confirm technical details, arrange shipment, and communicate after-sales requirements clearly.
Equipment Selection For Real Workshops
Recommended Solution for Laser Cutting
A proven combination that delivers fast, precise, and safe sheet metal handling for fiber laser cutting machines.

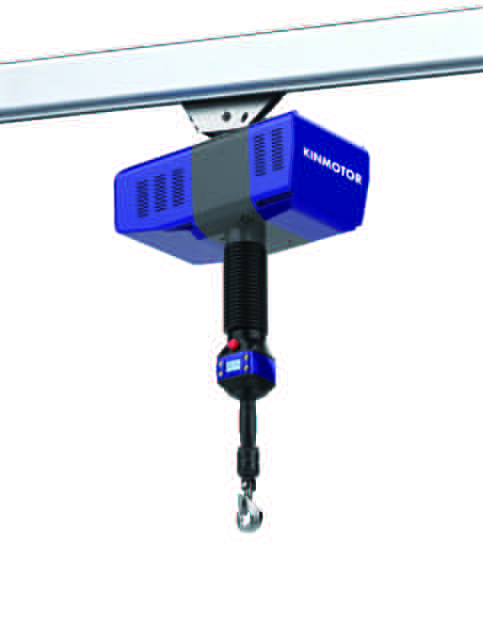

X3 Series
Intelligent Servo Hoist
- Wire rope structure — higher precision, faster speed
- Max speed 30 m/min, min speed 0.05 m/min
- Stepless speed control with millimeter-level positioning
- Handle & suspension dual mode operation
- Anti-rebound, power-off protection, overload protection
- Soft limit function reduces collision risk
+

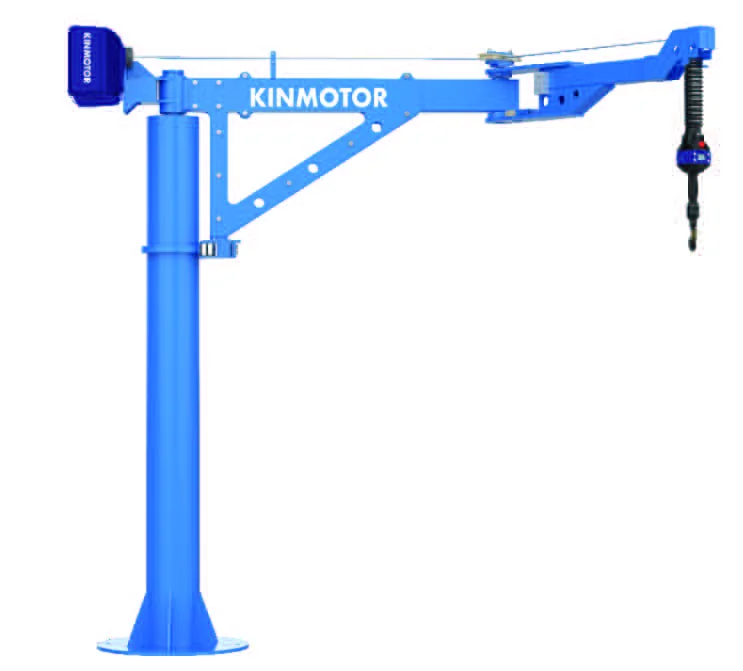

JZ-E Series

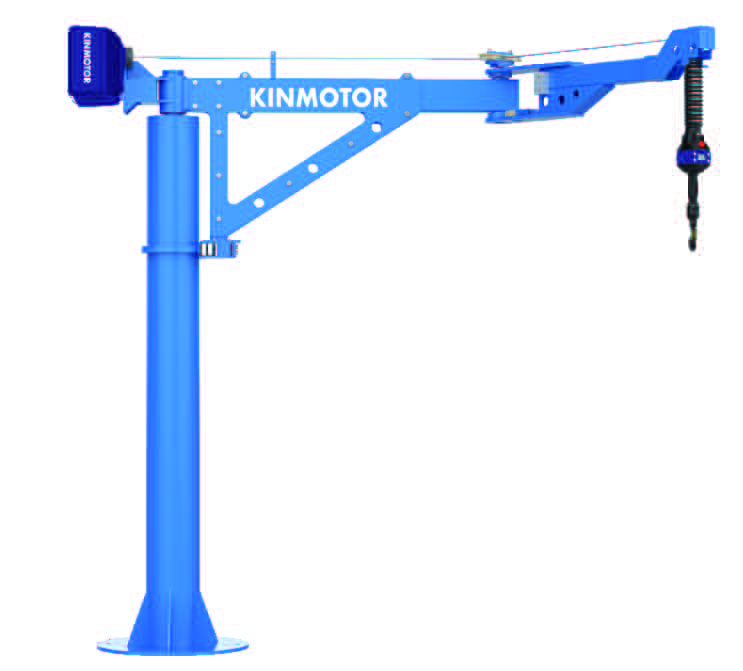

Rear-Mounted Intelligent Folding Jib Crane
0.3T × 4m × 3m — Proven combination with X3 hoist
- 360° primary arm + 270° secondary arm rotation
- Adjustable damping for smooth operation
- Compatible with fixtures for automated handling
- Hand control and suspension modes
How It Works in Your Shop
1
Pick
X3 hoist descends to sheet metal stack, zero-speed start for precise grip
→
2
Lift
Stepless acceleration lifts sheet smoothly—no swing, no damage
→
3
Swing
Folding jib crane covers 360° working area around the laser bed
→
4
Place
Millimeter-precise placement on the laser table—ready to cut
Full Product Line
From compact workstations to heavy-duty crane systems, one intelligent lifting ecosystem.
Intelligent Servo Hoists

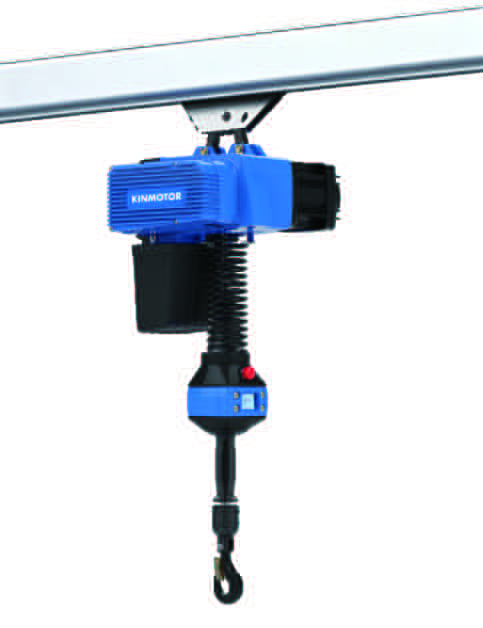

D3 Series
Intelligent servo hoist with handle/suspension dual mode. Photoelectric sensor for safety. 125–500 kg.
- Stepless speed 0–16 m/min
- Overload & anti-rebound protection
- Industrial processor servo control

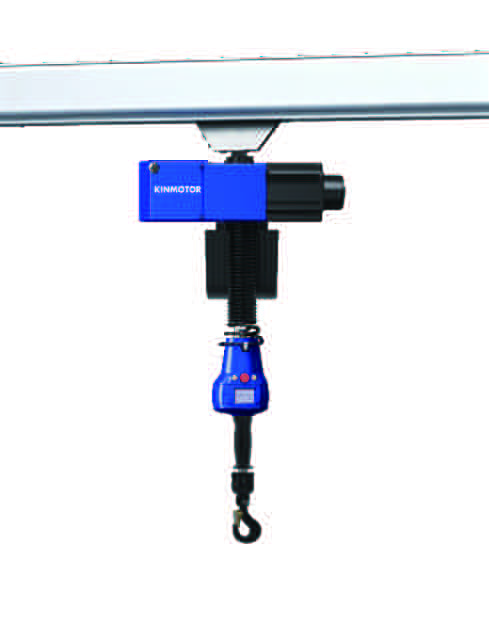

Q6 Series
Wide-range intelligent servo hoist. 100–600 kg. Optional dual-speed wireless control.
- Speed 0–16 m/min
- Coaxial sliding handle
- Hall sensor signal conversion
Recommended
X3 Series
Wire rope structure for higher speed and precision. 100–600 kg. Ideal for laser cutting.
- Max 30 m/min lifting speed
- 360° rotating plate
- LCD panel with B6 handle
VFD Chain Hoists

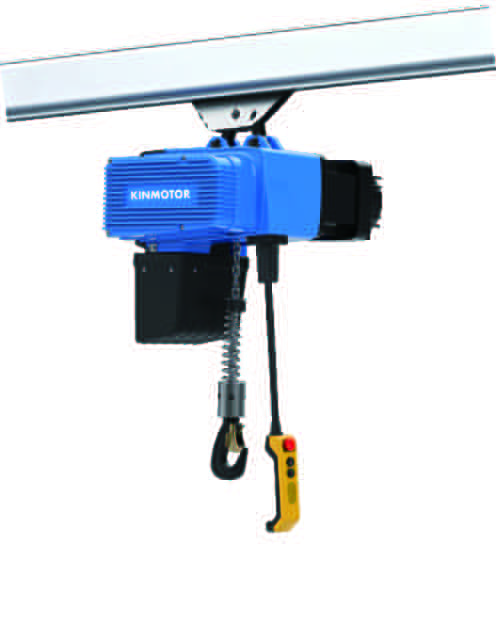

D2 Series VFD Chain Hoist
Aluminum alloy housing. Custom frequency converter with variable-frequency motor. 125–2000 kg.
- 50% faster than conventional high gear
- IP55 protection level
- Built-in remote control module

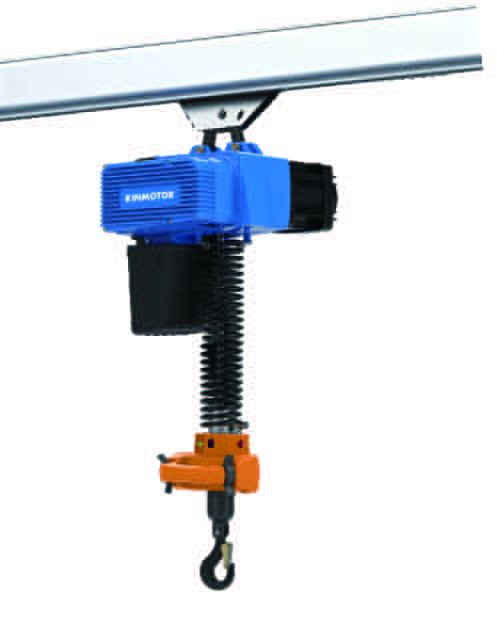

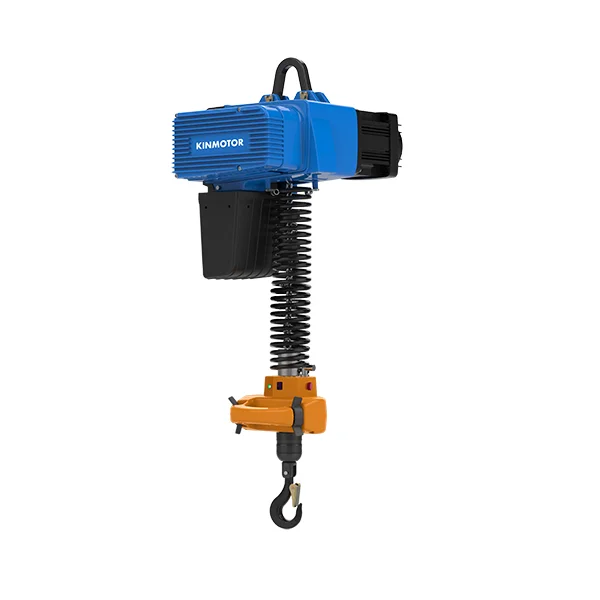

D2 Series with Handix
Ergonomic handle with dual-sided control paddles. Stepless speed for millimeter-level movement. 125–500 kg.
- One-hand operation
- F3 dual-speed / F2 stepless handle
- Wireless control option
Crane & Rail Systems

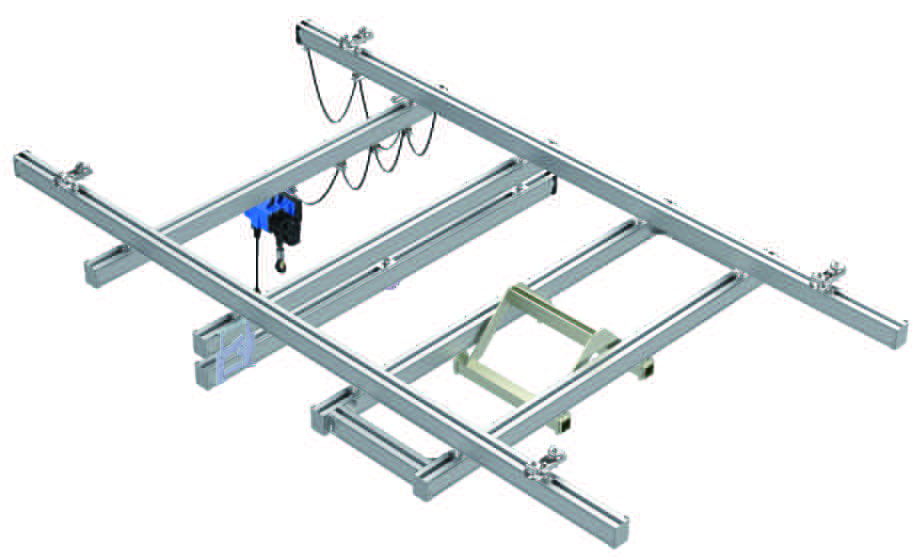

Aluminum Rail Crane
Modular design, anodized surface. Max 2000 kg. Suitable for clean factories and high-precision workstations.

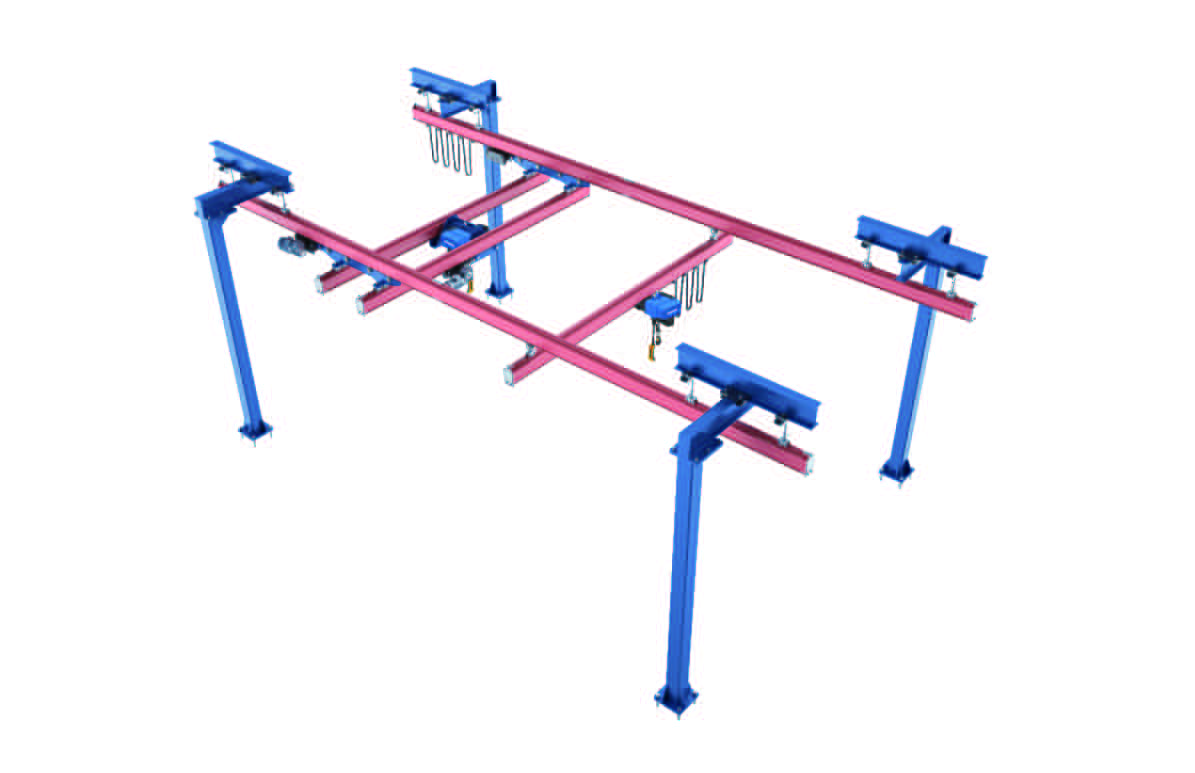

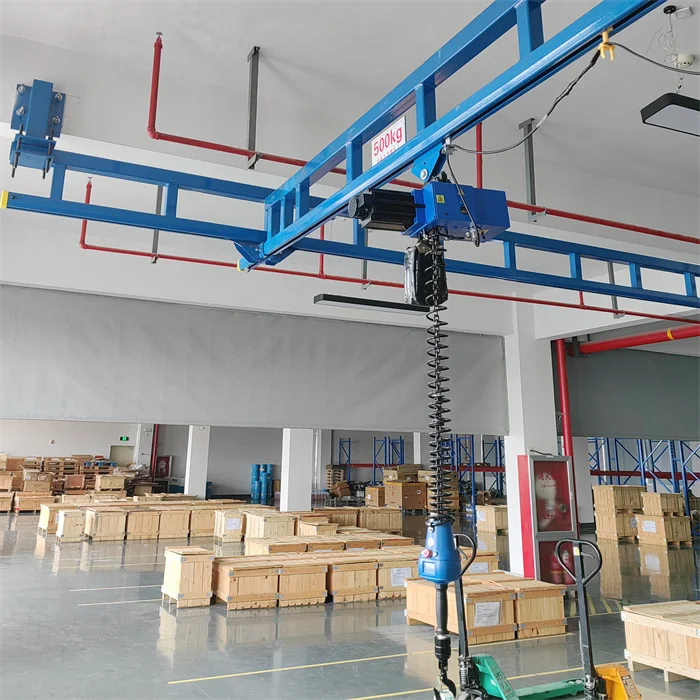

KBK Rail Crane
Flexible light crane system. 125 kg–2T. Standard modules with bolt connection—easy installation.

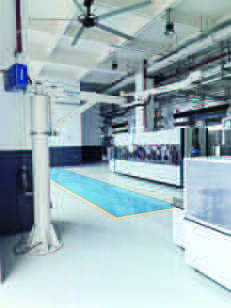

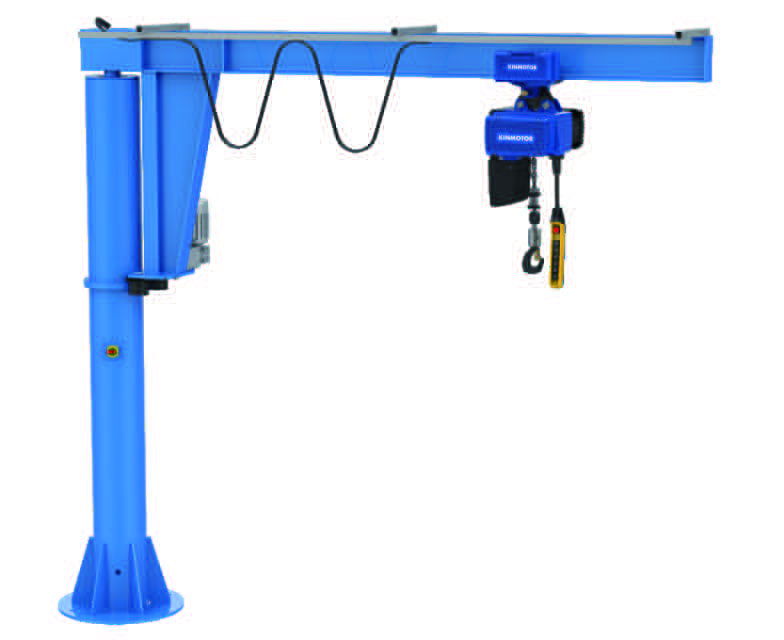

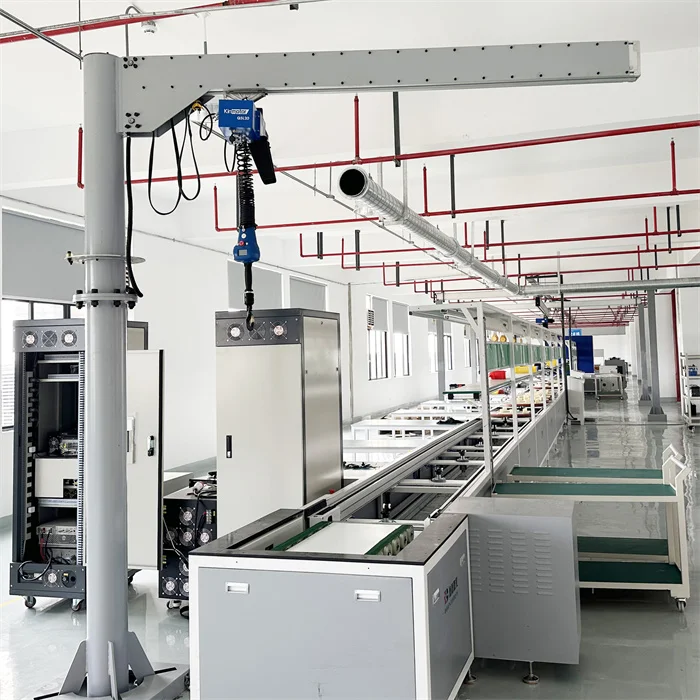

Jib Crane Series
MSJ 360° pillar jib (max 500 kg), I-beam jib (max 5000 kg), aluminum alloy jib (max 500 kg).

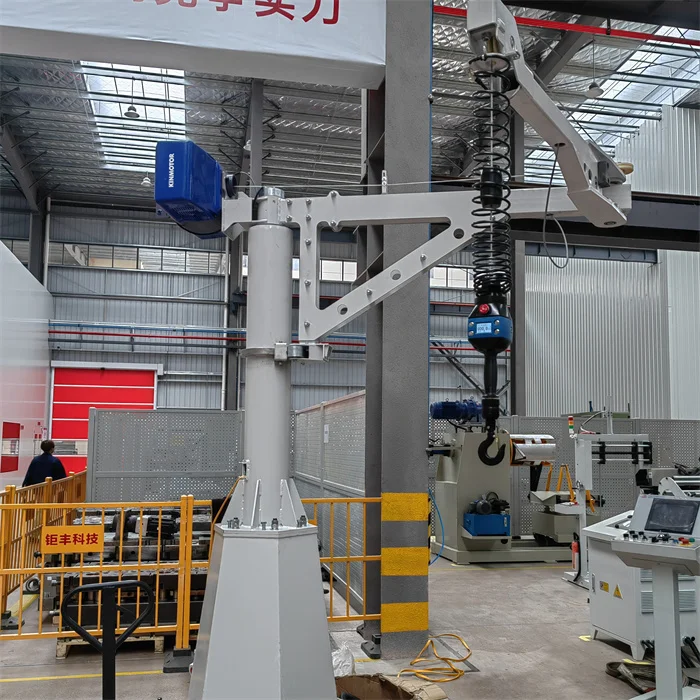

Folding Jib Cranes
JZ-E Rear-Mounted
Max 300 kg, arm length up to 4m (2m+2m). Primary arm 360°, secondary arm 270° rotation. Ideal for laser cutting workstations.
JZ-F Front-Mounted
Max 300 kg, arm up to 4m. Flexible operation with accurate positioning. Compatible with the listed hoist series.
Mobile & Special Solutions

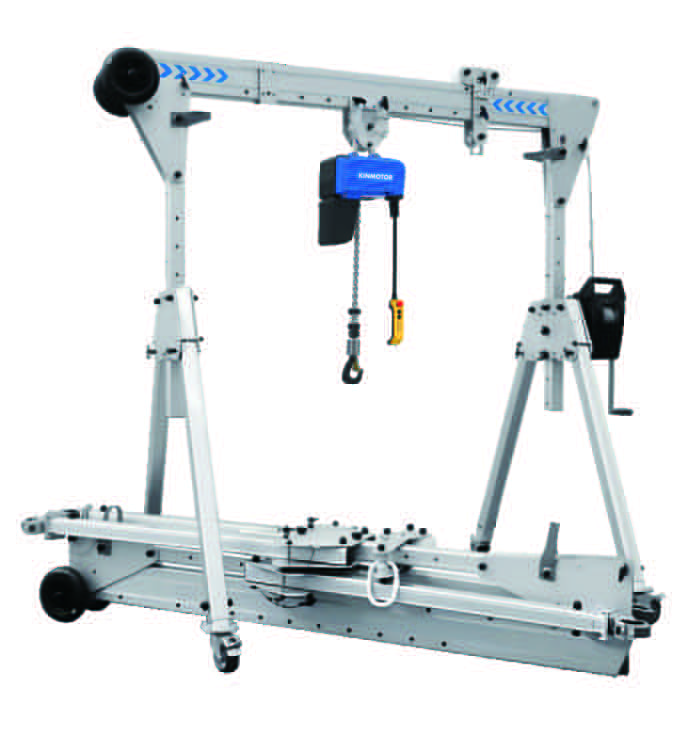

Mobile Gantry Crane
Adjustable & fixed height types. Max 2000 kg, span up to 9m. Non-abrasive PU casters for easy movement.

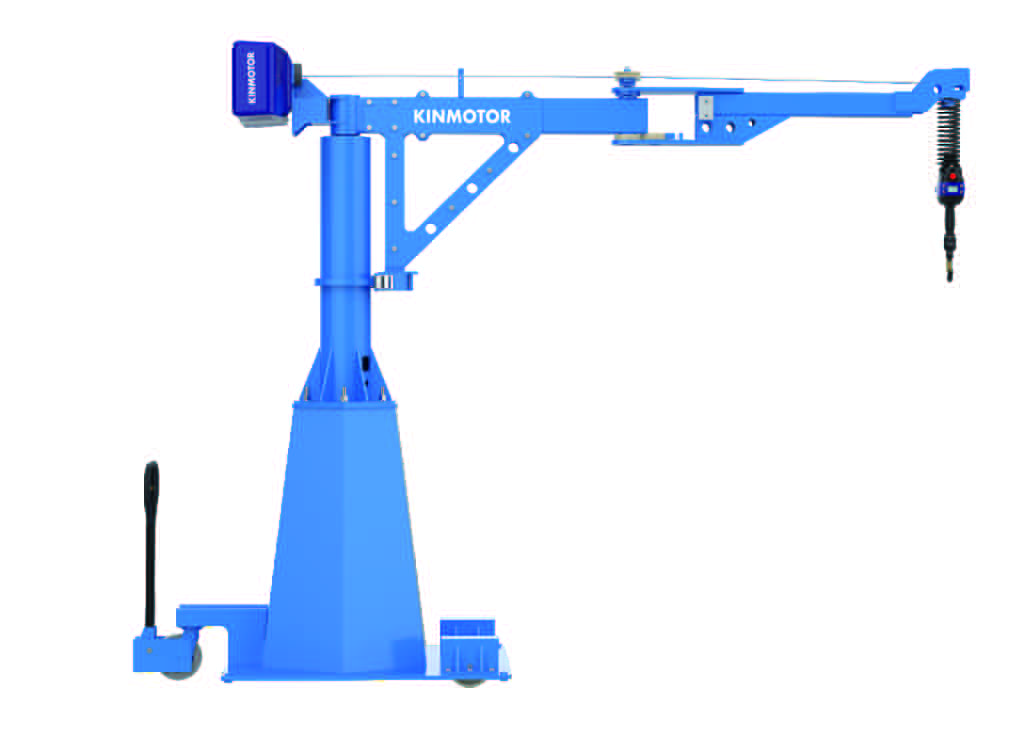

JZ-D Mobile Folding Jib
Max 200 kg, arm up to 3m. Removable counterweight base—hand-push or vehicle-tow adjustable.

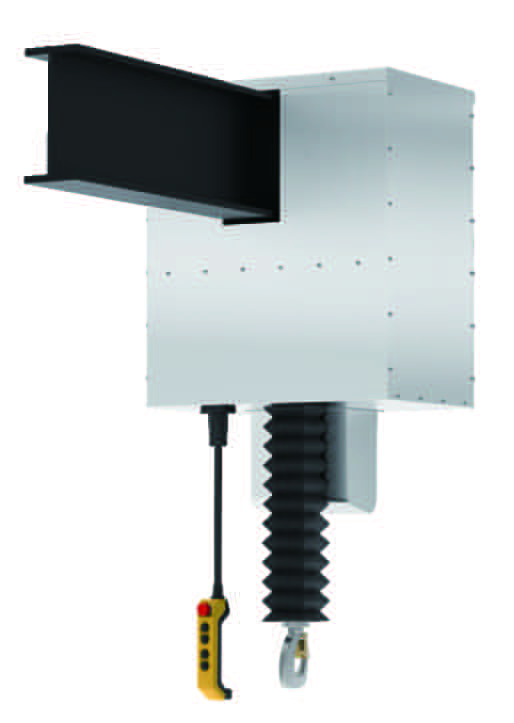

Clean Room Travelling Type
Designed for controlled environments. 1T rated load with servo/VFD speed control options.
Industries We Serve
EUCHIO supplies lifting solutions beyond laser cutting, helping manufacturers across industries achieve safer, faster, and more precise material handling.
Laser Cutting
Sheet metal loading & unloading for fiber laser machines. X3 + folding jib crane is a common configuration for compact workstations.
Robotics
Precision component handling for robot assembly lines. Stepless speed control supports careful, low-impact positioning.
Precision Machining
Workpiece loading for CNC machining centers. Millimeter-level accuracy protects expensive tooling and parts.
Mold Manufacturing
Heavy mold handling with precision. From die casting to injection molds—safe positioning without impact.
Automotive Parts
Engine component and body panel handling. Fast cycle times with zero-speed precision for assembly stations.
Clean Room
Semiconductor and medical device manufacturing. Corrosion-resistant aluminum construction with low particle generation.
Servo Hoist vs. Traditional Hoist
Why smart manufacturers are switching to intelligent servo lifting technology.
| Feature | Servo Hoist | Traditional Hoist |
|---|---|---|
| Speed Control | Stepless, 0.05–30 m/min Millimeter-precise positioning at any speed |
Fixed 2-speed or single-speed Coarse positioning, easy to overshoot |
| Positioning Accuracy | Millimeter-level Servo motor with closed-loop control |
Typically centimeter-level positioning Open-loop, relies on operator skill |
| Starting Behavior | Zero-speed start No sudden jerk, smooth acceleration |
Instant full-speed start Load swing, safety risk |
| Safety Features | Anti-rebound, overload, soft limit Power-off protection built in |
Basic overload clutch Limited electronic protection |
| Operation Modes | Handle + Suspension + Wireless Multiple control options |
Pendant control only Limited ergonomic options |
| Energy Efficiency | Lower energy use in many duty cycles Servo motor draws power according to demand |
Continuous motor operation Higher electricity cost |
| Maintenance | Lower mechanical wear potential Fewer mechanical contact points |
Regular brake/clutch wear More frequent downtime |
| Typical Lifespan | Designed for long service life Actual lifespan depends on duty cycle and maintenance |
Varies by model and duty cycle Maintenance has a major impact |
Performance varies by duty cycle, load, and operating environment. Contact us for a selection analysis for your application.
Typical Applications
Common configurations that show how smart lifting systems can be adapted across different industries and markets.
Automotive Parts

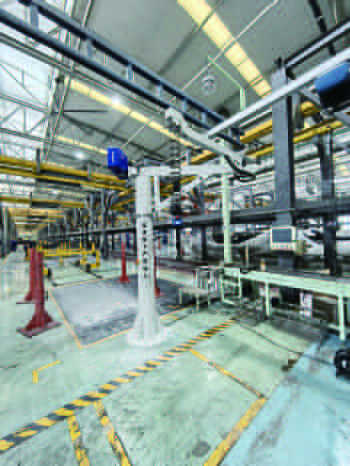

Dual Jib Crane Setup for Assembly Line
Two JZ-F front-mounted folding jib cranes serving a robotic welding cell. Controlled handling helps reduce part impact during positioning.
Precision Machining
Aluminum Rail System for CNC Zone
Modular aluminum rail crane covering 4 CNC machining centers. Smooth, clean operation in a temperature-controlled workshop.
Mold Manufacturing
KBK Rail Crane for Mold Workshop
Flexible KBK system with D2 VFD hoists handling molds up to 1.5T. Helps make mold changeover more controlled and repeatable.
Quality & Certifications
We help confirm the required quality, compliance, and documentation details during quotation and project communication.
Quality Management
Manufacturing quality documentation available on request
Compliance Support
Product compliance documents can be confirmed during quotation
Technical Review
Application details are checked before final configuration
IP55 Protection
Dust-tight and water-jet resistant motors
Frequently Asked Questions
Quick answers to common questions about smart hoist and light crane solutions.
What is the lead time for a standard X3 hoist + jib crane combo?
Standard configurations typically ship within 15–25 business days. Custom specifications or special voltage requirements may add 5–10 days. Contact us with your requirements for an exact delivery estimate.
What voltage and frequency options are available?
Standard: 380V/50Hz (3-phase). Also available: 220V/60Hz, 440V/60Hz, 480V/60Hz, and other regional voltages. Please specify your local power supply when inquiring.
What is the warranty period for the hoist and crane systems?
Standard hoist and crane systems come with a 12-month warranty from the date of shipment. Extended warranty options are available. Warranty covers manufacturing defects under normal industrial use.
Do you provide installation support?
We provide detailed installation manuals, video guides, and remote technical support. On-site installation and commissioning can be arranged for larger projects — please discuss with our team when placing your order.
How do I choose the right hoist capacity for laser cutting?
For most sheet metal shops, a 300 kg (0.3T) hoist handles standard 1.5m × 3m sheets. For thicker plates or larger formats (2m × 4m), consider 500–600 kg. Our sales engineers can help with a free selection analysis based on your specific sheet sizes and production volume.
Can I order spare parts for existing equipment?
Yes. We stock common spare parts and can ship express to most destinations. Provide your hoist model and serial number for accurate parts identification.
